The Big-Bag Filling Installations are located at the end of the processing line and perform the function of dense big-bag filling with the raw materials obtained as a result of their going through all the line stages.
The dry clean PET flakes in the final form fall within the big-bags, and they are fully suitable for the secondary use.

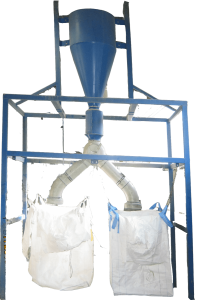

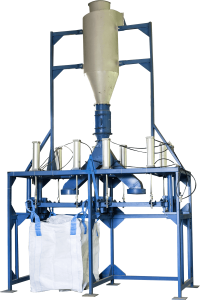

Big-bag filling installation | Big-Bag filling installation ПП-10 | |||
ЦВЧ.00 | БСЧ.00 | |||
Purpose | Transportation of PET flakes from the separation installation to the final stage of the technological process, followed by packaging into the containers. | Collection and receipt of the light fraction (dust, paper particles and labels). | Filling and compacting of the big-bag with the raw materials (up to 1 t) using a pneumatic system. | |
Overall dimensions | height | 5350 mm | 3840 mm | 5800 mm |
length | 2840 mm | 1620 mm | 2780 mm | |
width | 1620 mm | 1520 mm | 1270 mm | |
Completeness | – unloading cyclone collector – magnetic picker – distributor |
– Cyclone collector 600 – Pneumatic cylinders 40m2L100A400 Сamozzi (8 pcs.) – Magnetic picker П8БММ |
