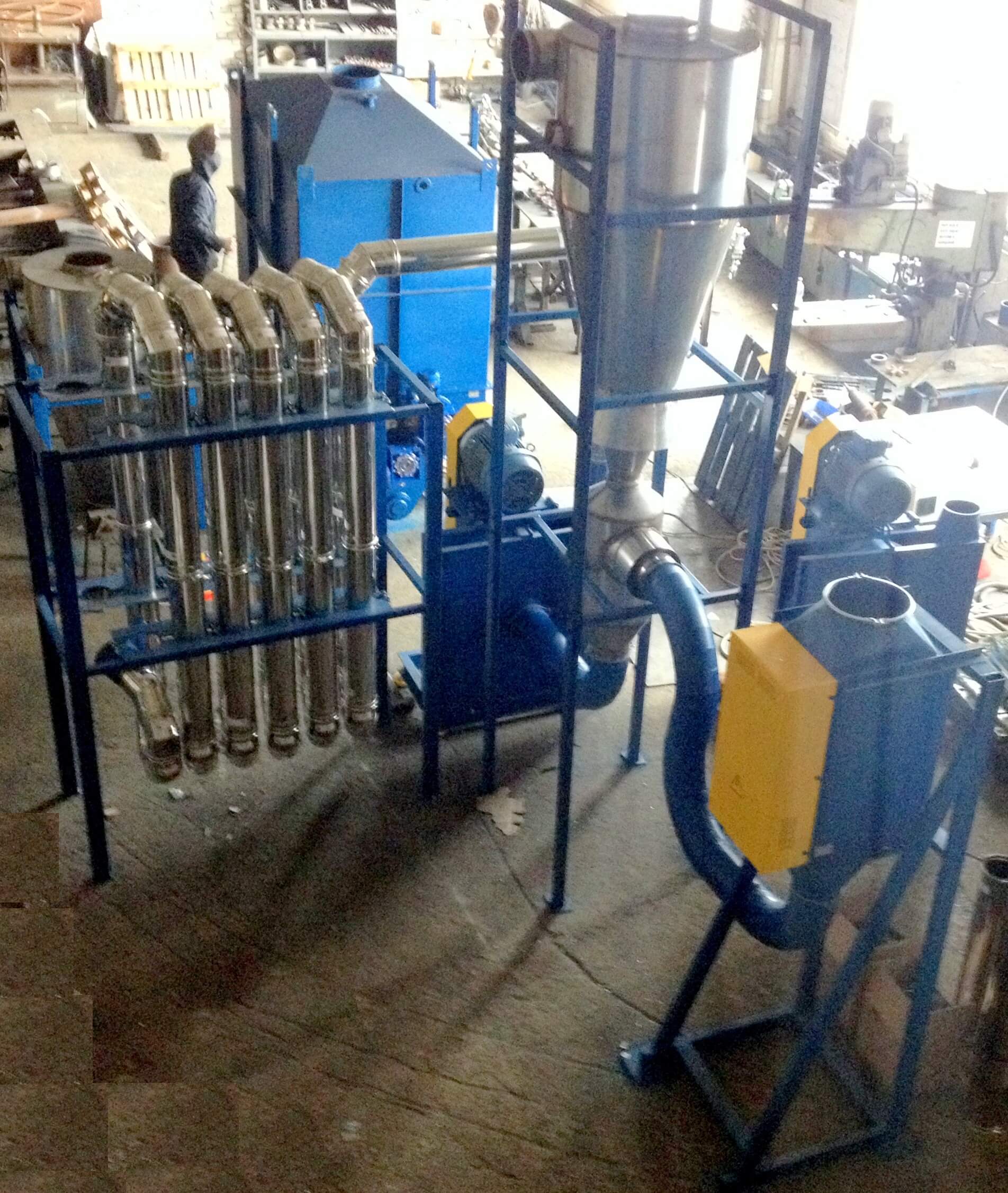

РЕ/РР DRYING LINE

Processing industry

The РЕ/РР Drying Line (polyethylene and polypropylene raw materials) is a semi-automatic line of processing industry, where the chopped PE/PP raw materials undergo the process of drying.

TECHNICAL CHARACTERISTICS

Performance 350-500 kg/h
Installed capacity 108.5 kW
Nominal voltage 380 V
Current frequency 50 Hz
Minimally required production area 44 m2
Maximum height of the line 5100 mm

DRYING LINE COMPLETENESS

Axial-flow fan 2 pcs.
Air heater ПП-55/000 СК 2 pcs.
Pipeline 1 ПП-60/000 СК 2 pcs.
Frame ПП-58/000 СК 2 pcs.
Cyclone collector 500200-01.00.000 СК 3 pcs.

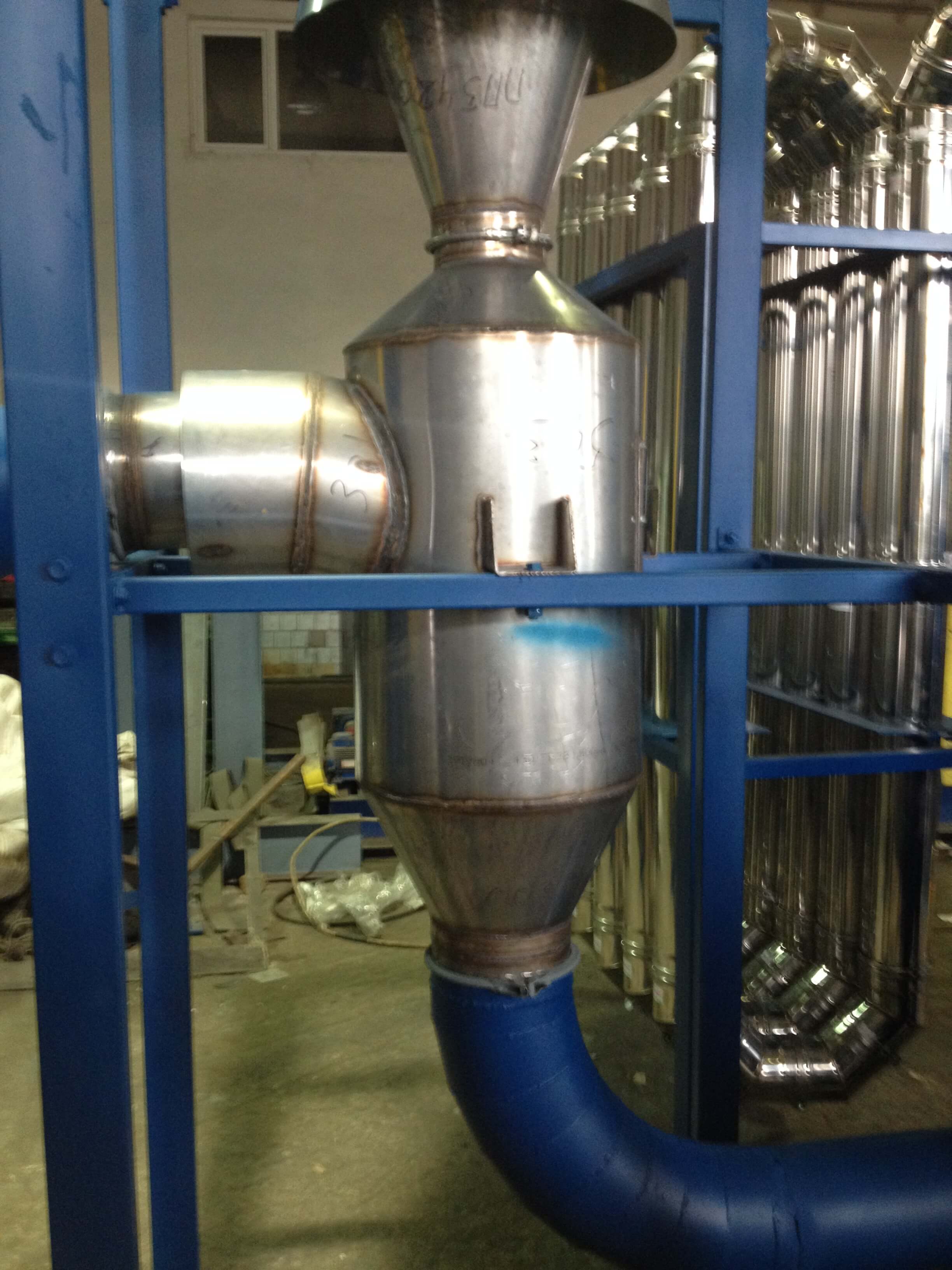

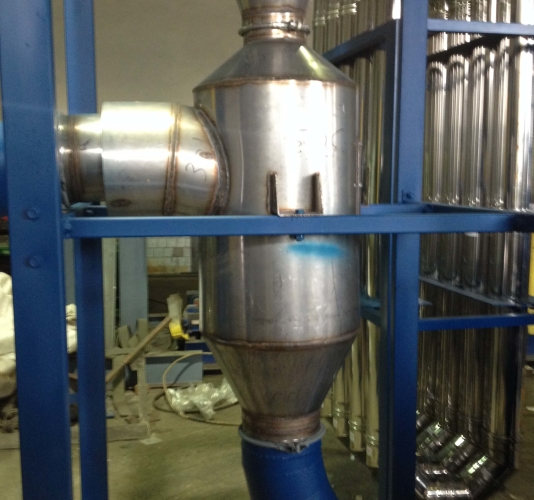

Injector ПП-54/000 СК 2 pcs.
Pipeline 2 ПП-61/000 СК 2 pcs.
Unloading fan ВВ-780 500.206-00.00.000 СК 2 pcs.

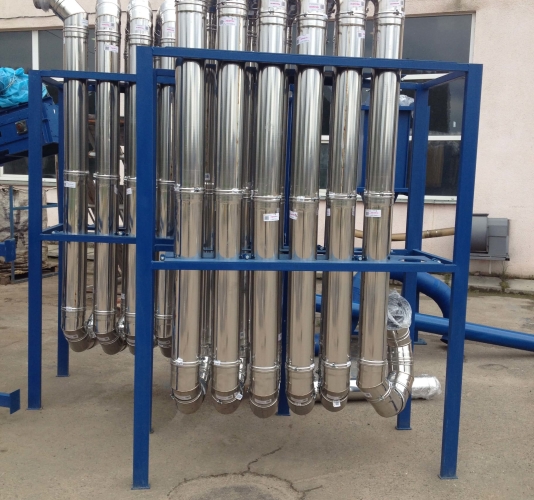

Spiral drier (L = 30 m) ПП-56/000-01 СК 1 pc.
Spiral drier (L = 35 m) ПП-56/000 СК 1 pc.
Hopper frame ПП-59/000 СК 1 pc.
Hopper 500212-00.00.000 СК 1 шт.
Adapter 200/160 ПП-62/000 СК 4 pcs.
Substrate 160 (1х205х500) 1 pc.
Substrate 160 (1х190х500) 1 pc.
Pipe D160 1000 mm 15 pcs.
Crank D160 45 14 pcs.
Hoop D160 29 pcs.
Hoop 200 НВ-14.300 13 pcs.
